   Notify me when this product becomes available:

M4-ATX, 250w output, 6v to 30v wide input Intelligent Automotive DC-DC Car PC Power Supply


More: Get Quote
Availability:   Usually ships in 24h.

NEW! Plug-In Smart car PC PSU

- 250 Watts (300 Watts peak)
- 20/24 pin ATX, 6-30V wide input
- Programmable timing settings via USB
- Intelligent shutdown controller
- ON/OFF motherboard control
- Survives vehicle engine cranks
- Battery deep discharge prevention
- High efficiency, 250 watts output
- "Anti-Thump" Amplifier remote control
- <1.5mA standby current
- VIA, Intel, AMD CPU support

- OSCON / POSCAP (solid polymer) capacitors, Japan
- manufactured by mini-box.com
- ROHS compliant version

Download the M4-ATX Software

USB 2.0 interface

  Linux/MacOS/*BSD Api
  Dimensions and Drills
  RoHS Certificate of Compliance
  Long life

Intelligent Automotive / Car DC-DC ATX PC Power Supply

http://www.cartft.com/ - company specialized in Car PCs solutions.
M4-ATX is an intelligent, high power, vehicle (car / boat / electric cart) DC-DC ATX PC power supply designed for use with car pc or general purpose battery powered applications. Designed to provide power and to control the motherboards's ON/OFF switch based on ignition status, M4-ATX is a wide input (6 to 30V) vehicle / car / battery operated ATX power supply capable of surviving tough car engine cranks (down to 6V) as well as transient over-voltage situations. Connect it to your car / boat / RV / solar battery and power up your PC! By using Patent Pending HyperWatt[TM] technologies, M4-ATX packs an impressive amount of power relative with its small footprint. M4-ATX has several key advantages over traditional power supplies:

- Programmable shutdown / sleep modes via optional serial cable.
- Fits any motherboard equipped with a 20 or 24pin ATX connector.
- 100% silent, fanless, no moving parts.
- Operates from 6-30V, multi-chemistry batteries supported.
- Highly efficient design, does not produce a lot of heat.
- Works with any Intel Core Duo as well as all VIA or AMD processors.

Firmware on the M4-ATX can be changed to accommodate different behaviours. OEM / reseller integration is welcome. Please send en email to mailto:%20m1-atx@mini-box.com with your custom requirements.

1. M4ATX System Tray Monitor & Setup Application

This install kit provides two applications. M4ATXTray.exe which allows monitoring the M4ATX power supply voltages and temperature (needs to be connected thru a USB cable to the computer).The application adds a small icon on windows system tray which on mouse over displays the voltages and temperature, and can be customized with several skins.
Download M4ATX System Tray Monitor & Application

See below for some example skin screenshots.

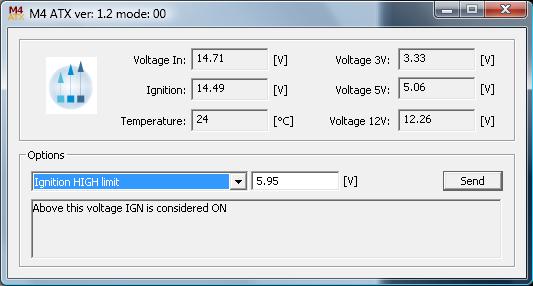

The second application M4_ATX.exe allows to setup various parameters of the power supply like ignition voltage limit or shutdown voltage limit.

2. M4ATX OEM Setup Application

Download M4ATX OEM Setup Application
WARNING: This program is intended only for OEM or Advanced Users. Mini-Box.com cannot be held responsible for any damage that might come from the use of this software done to your power supply or other computer components Application allows advanced setup of M4ATX parameters.

3. Linux/MacOS/*BSD Api

Download m4api.tar.gz
updated versions can be found in the Git repository at the http://ram.umd.edu/wiki/Public/Software/m4api website.


# Monitor input and output voltage levels:
$ ./m4 -diag loop
-- 1262486581
VIN: 11.34
IGN: 11.23
33V: 3.33
5V: 5.06
12V: 12.18
TEMP: +28
-- 1262486582
VIN: 11.34
IGN: 11.34

# Display your PSU's configuration:
$ ./m4 -config
IGN_HIGH: 5.84 V
IGN_LOW: 5.50 V
IGN_DBC: 500 ms
PSU_DELAY: 1 sec

# Check or update specific variables:
$ ./m4 -config VIN_MIN_ON
9.55 V
$ ./m4 -config VIN_MIN_ON 10.0
$ ./m4 -config VIN_MIN_ON
9.99 V
